Fuel Pump And Sender Unit — Installation — Fuel Tank And Lines - 2.3L EcoBoost (231kW & 314PS) · Reference 6189

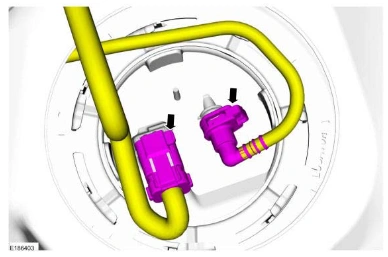

Fuel Pump And Sender Unit — original illustration 1, reference 6189Original colors & callouts · Select to enlarge

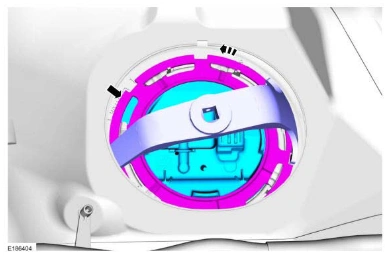

8. Using the special tool remove the Fuel Pump and Sender Unit lock ring.

Use Special Service Tool: 310-123 Locking Ring, Fuel Tank.

Fuel Pump And Sender Unit — original illustration 2, reference 6189Original colors & callouts · Select to enlarge

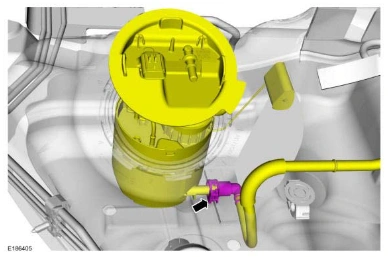

9. Disconnect the internal fuel tube-to-Fuel Pump and Sender Unit quick connect coupling and remove the Fuel Pump and Sender Unit. Refer to: QUICK RELEASE COUPLING - 2.3L EcoBoost (231kW/314PS).

Fuel Pump And Sender Unit — original illustration 3, reference 6189Original colors & callouts · Select to enlarge

REMOVAL AND INSTALLATION > FUEL PUMP AND SENDER UNIT > INSTALLATION

NOTE: Make sure the alignment tabs on the Fuel Pump and Sender Unit and the fuel tank meet prior to tightening the Fuel Pump and Sender Unit lock ring.
