Fuel Tank — Removal — Fuel Tank And Lines - 2.3L EcoBoost (231kW & 314PS) · Reference 6192

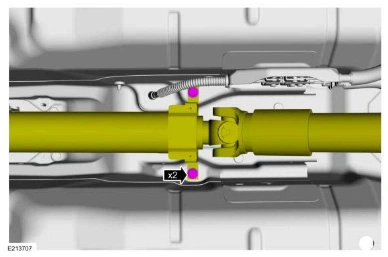

Fuel Tank — original illustration 1, reference 6192Original colors & callouts · Select to enlarge

8. Release the clamp and disconnect the fuel tank filler pipe from the fuel tank.

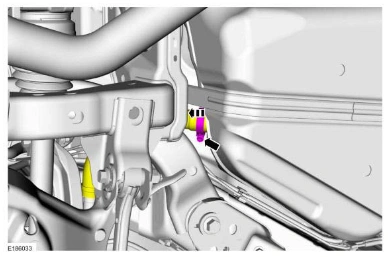

Fuel Tank — original illustration 2, reference 6192Original colors & callouts · Select to enlarge

9. Disconnect the fuel vapor tube assembly-to-fuel tank quick connect coupling. Refer to: QUICK RELEASE COUPLING - 2.3L EcoBoost (231kW/314PS).

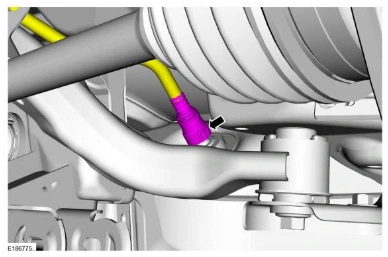

Fuel Tank — original illustration 3, reference 6192Original colors & callouts · Select to enlarge

10. Remove the nut and position the LH emergency brake cable bracket aside.
