Fuel Tank — Removal — Fuel Tank And Lines - 2.3L EcoBoost (231kW & 314PS) · Reference 6193

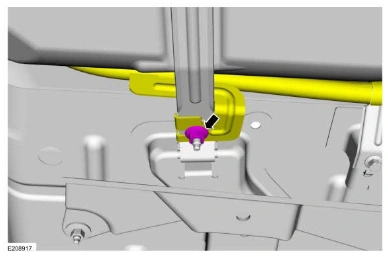

Fuel Tank — original illustration 1, reference 6193Original colors & callouts · Select to enlarge

11. Remove the nut and position the RH emergency brake cable bracket aside.

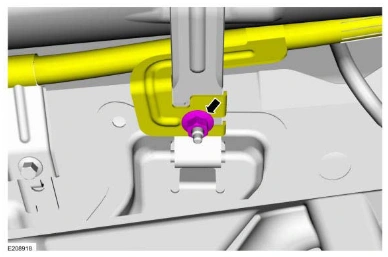

Fuel Tank — original illustration 2, reference 6193Original colors & callouts · Select to enlarge

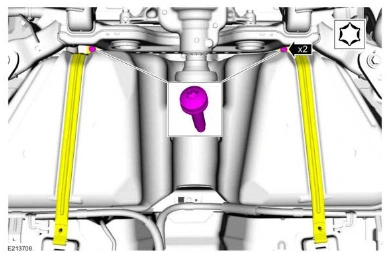

12. Using an appropriate impact tool and a TP50 "Torx Plus" Socket Driver, remove the fuel tank strap bolts.

Fuel Tank — original illustration 3, reference 6193Original colors & callouts · Select to enlarge

NOTE: Once the fuel tank is removed from the vehicle, reinstall the driveshaft center support bearing bolts by hand and support the rear of the driveshaft with a jackstand or mechanics wire.

13.

1. Lower the front of the fuel tank.
