Fuel Tank — Installation

Fuel Tank And Lines - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 6,194HTML edition
← Chapter contentsManual collection

2. Remove the fuel tank.

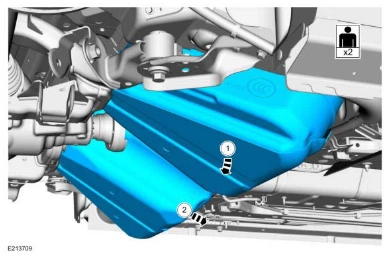

Fuel Tank — original illustration 1, reference 6194Original colors & callouts · Select to enlarge

REMOVAL AND INSTALLATION > FUEL TANK > INSTALLATION

1.

1. Position the fuel tank above the rear differential.

2. Raise the fuel tank into position.

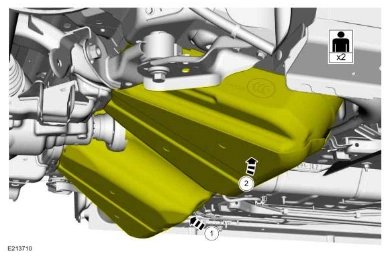

Fuel Tank — original illustration 2, reference 6194Original colors & callouts · Select to enlarge

2. Clean the bolts and weld nuts lightly with a wire brush.

Apply the thread locking sealant to the bolt threads.

Material

: Threadlock and Sealer / TA-25-B

NOTE: To insure that the bolts are threaded in straight, start the bolts by hand

Ford_Mustang_all_2015-2017.pdf · source reference 6194
