Fuel Tank — Removal — Fuel Tank And Lines - 2.3L EcoBoost (231kW & 314PS) · Reference 6191

Index mark the driveshaft and pinion flange for reference during installation.

Remove the driveshaft to pinion flange bolts.

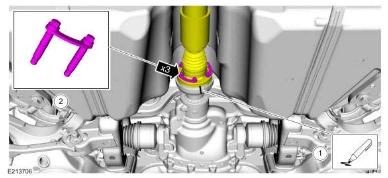

Fuel Tank — original illustration 1, reference 6191Original colors & callouts · Select to enlarge

NOTE: Do not over articulate the driveshaft or damage may occur.

6. Support the driveshaft.

Using a screwdriver inserted into the slot on the pinion flange, pry the driveshaft from the pinion flange.

Use the General Equipment: Flat Headed Screw Driver

Separate the driveshaft from the pinion flange.

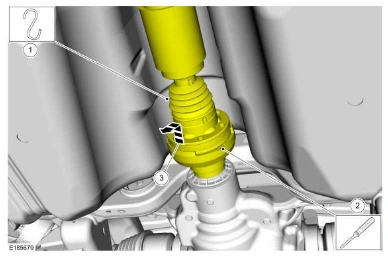

Fuel Tank — original illustration 2, reference 6191Original colors & callouts · Select to enlarge

NOTE: Do not over articulate the driveshaft or damage may occur.

7. Remove the driveshaft center support bearing bolts and lower the driveshaft away from the rear axle flange.
