Fuel Tank — Installation

Fuel Tank And Lines - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 6,197HTML edition

← Chapter contents Manual collection

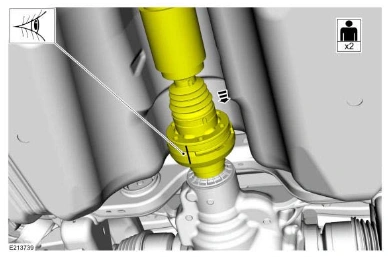

Fuel Tank — original illustration 1, reference 6197 — Fuel Tank — original illustration 1, reference 6197Original colors & callouts · Select to enlarge

8. Clean the bolts.

Apply the thread locking sealant to the bolt threads.

Material

: Threadlock and Sealer / TA-25-B

Install the bolts.

Torque

: 41 lb.ft (55 Nm)

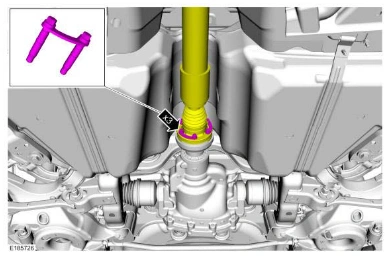

Fuel Tank — original illustration 2, reference 6197 — Fuel Tank — original illustration 2, reference 6197Original colors & callouts · Select to enlarge

9. Clean the bolts.

Apply thread locking sealant to the bolt threads.

Material

: Threadlock and Sealer / TA-25-B

Install the bolts.

Torque

: 35 lb.ft (48 Nm)
