and turn several threads before tightening.

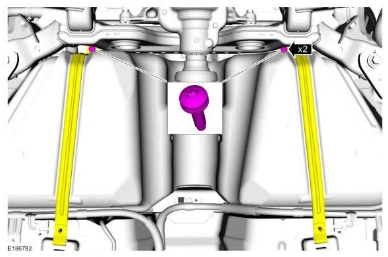

Position the fuel tank straps and install the bolts.

Torque

: 38 lb.ft (52 Nm)

Fuel Tank — original illustration 1, reference 6195Original colors & callouts · Select to enlarge

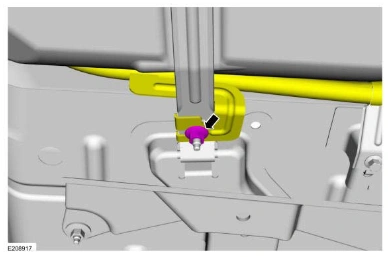

3. Reposition the LH emergency brake cable bracket and install the nut.

Torque

: 18 lb.ft (25 Nm)

Fuel Tank — original illustration 2, reference 6195Original colors & callouts · Select to enlarge

4. Reposition the RH emergency brake cable bracket and install the nut.

Torque

: 18 lb.ft (25 Nm)
