Fuel Tank — Installation — Fuel Tank And Lines - 2.3L EcoBoost (231kW & 314PS) · Reference 6196

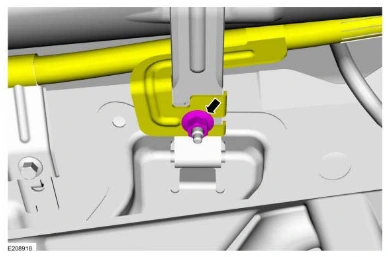

Fuel Tank — original illustration 1, reference 6196Original colors & callouts · Select to enlarge

5. Connect the fuel vapor tube assembly-to-fuel tank quick connect coupling. Refer to: QUICK RELEASE COUPLING - 2.3L EcoBoost (231kW/314PS).

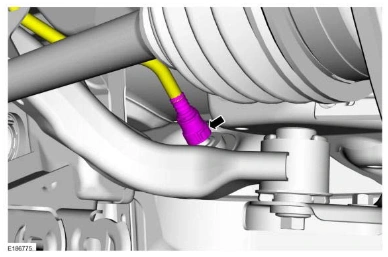

Fuel Tank — original illustration 2, reference 6196Original colors & callouts · Select to enlarge

6. Connect the hose to the fuel tank and tighten the clamp.

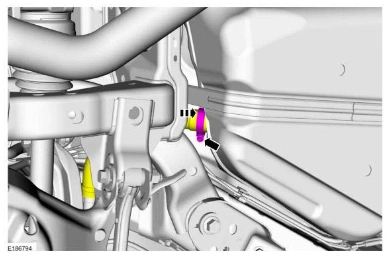

Fuel Tank — original illustration 3, reference 6196Original colors & callouts · Select to enlarge

NOTE: The help of a assistant will be needed. Do not over articulate the driveshaft or damage may occur.

7. Align the index marks on the driveshaft to the rear axle pinion flange.
