Fuel Tank — Installation

Fuel Tank And Lines - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 6,200HTML edition
← Chapter contentsManual collection

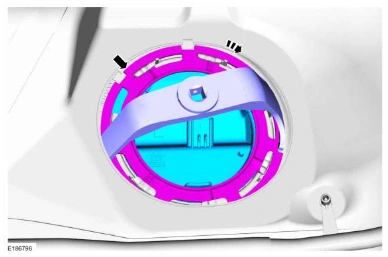

Fuel Tank — original illustration 1, reference 6200Original colors & callouts · Select to enlarge

NOTE: Clean the fuel level sensor connections, flange surfaces and the immediate surrounding area of any dirt or foreign material.

17. Connect the electrical connector.

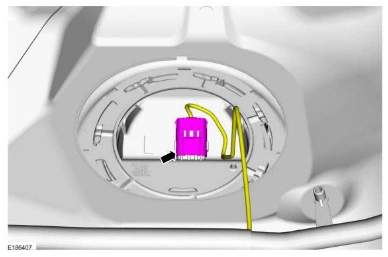

Fuel Tank — original illustration 2, reference 6200Original colors & callouts · Select to enlarge

18. Install the access cover.

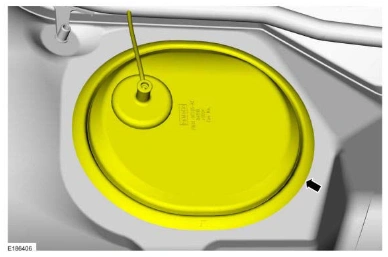

Fuel Tank — original illustration 3, reference 6200Original colors & callouts · Select to enlarge

19. Install the rear seat cushion. Refer to: Rear Seat Cushion .

20. Connect the battery ground cable. Refer to: Battery Disconnect and Connect .
