Fuel Tank Filler Pipe — Removal — Fuel Tank And Lines - 2.3L EcoBoost (231kW & 314PS) · Reference 6201

REMOVAL AND INSTALLATION > FUEL TANK FILLER PIPE

Special Tool(s) / General Equipment

Fuel Tank Filler Pipe — original illustration 1, reference 6201Original colors & callouts · Select to enlarge

292-00004 Fuel Tanker 100 GPM

REMOVAL AND INSTALLATION > FUEL TANK FILLER PIPE > REMOVAL

NOTE: Removal steps in this procedure may contain installation steps.

1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

2. Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect .

NOTE: The supplemental refueling adapter is located in the luggage compartment.

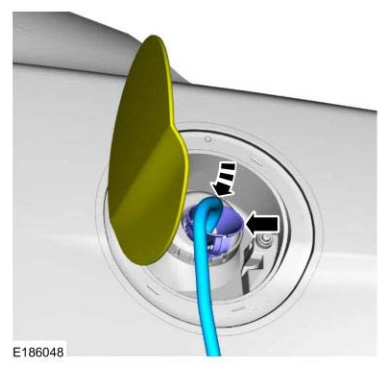

3. Install the supplemental refueling adapter and a 6 ft. length of 5/8 in. semi-rigid fuel drain tube into the Easy Fuel™ (capless) fuel tank filler pipe until the tube enters the fuel tank.

Fuel Tank Filler Pipe — original illustration 2, reference 6201Original colors & callouts · Select to enlarge

NOTE: This step is to remove approximately one-eighth tank of the fuel from a
