Fuel Tank Filler Pipe — Removal — Fuel Tank And Lines - 2.3L EcoBoost (231kW & 314PS) · Reference 6202

completely full fuel tank and the majority of any residual fuel in the fuel tank filler pipe, lowering the fuel level below the fuel tank filler pipe inlet.

4. Attach the Fuel Storage Tanker to the fuel drain tube and remove approximately one-eighth (approximately 2 gallons) of fuel from the tank.

Use Special Service Tool: 292-00004 Fuel Tanker 100 GPM.

5. Remove the rear wheel on the LH side. Refer to: Wheel and Tire .

6. Remove the retainers and position aside LH rear wheel splash shield aside.

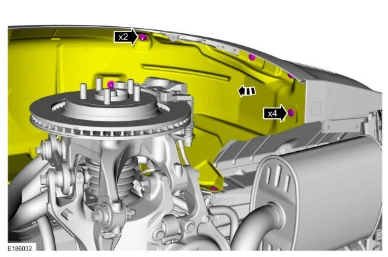

Fuel Tank Filler Pipe — original illustration 1, reference 6202Original colors & callouts · Select to enlarge

NOTE: Some fuel may remain in the fuel tank filler pipe after draining. Carefully disconnect the fuel tank filler pipe hose from the fuel tank and drain any residual fuel into a suitable container.

7. Release the clamp and disconnect the fuel tank filler pipe from the fuel tank.

Torque

: 53 lb.in (6 Nm)

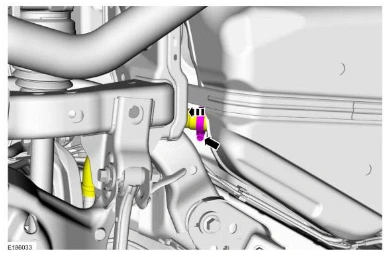

Fuel Tank Filler Pipe — original illustration 2, reference 6202Original colors & callouts · Select to enlarge
