Fuel Lines — Removal — Fuel Tank And Lines - 2.3L EcoBoost (231kW & 314PS) · Reference 6186

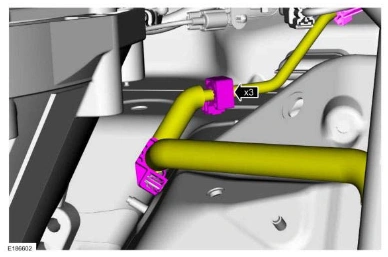

Fuel Lines — original illustration 1, reference 6186Original colors & callouts · Select to enlarge

6. Remove the nuts, bolts, push-pins and splash shield.

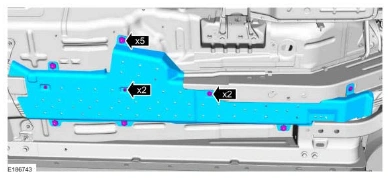

Fuel Lines — original illustration 2, reference 6186Original colors & callouts · Select to enlarge

7. Remove the nuts and the fuel tank deflector.

Torque

: 18 lb.ft (25 Nm)

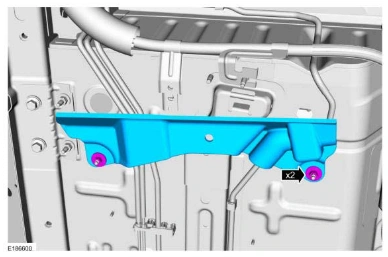

Fuel Lines — original illustration 3, reference 6186Original colors & callouts · Select to enlarge

8. Release the retainers and remove the fuel line.

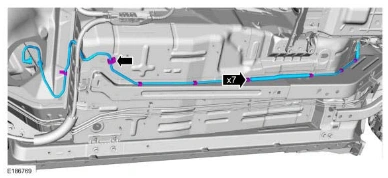

Fuel Lines — original illustration 4, reference 6186Original colors & callouts · Select to enlarge
