Fuel Lines — Removal — Fuel Tank And Lines - 2.3L EcoBoost (231kW & 314PS) · Reference 6184

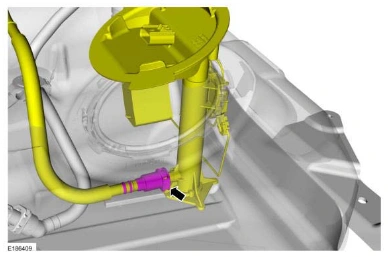

RELEASE COUPLING - 2.3L EcoBoost (231kW/314PS).

Fuel Lines — original illustration 1, reference 6184Original colors & callouts · Select to enlarge

REMOVAL AND INSTALLATION > FUEL LEVEL SENSOR > INSTALLATION

NOTE: Make sure the alignment tabs on the Fuel Level Sensor and the fuel tank meet prior to tightening the Fuel Level Sensor lock ring.

NOTE: Make sure to install a new Fuel Level Sensor O-ring seal.

1. To install, reverse the removal procedure.

REMOVAL AND INSTALLATION > FUEL LINES > REMOVAL

1. Remove the fuel tank. Refer to: Fuel Tank .

2. Remove the nuts and the engine appearance cover.

Torque

: 80 lb.in (9 Nm)

Ford_Mustang_all_2015-2017.pdf · source reference 6184
