Fuel Level Sensor — Removal — Fuel Tank And Lines - 2.3L EcoBoost (231kW & 314PS) · Reference 6180

	292-00004 Fuel Tanker 100 GPM
Fuel Level Sensor — original illustration 2, reference 6180Original colors & callouts · Select to enlarge	310-123 Locking Ring, Fuel Tank TKIT-2004J-F TKIT-2005U-LM

Fuel Level Sensor — original illustration 1, reference 6180Original colors & callouts · Select to enlarge

REMOVAL AND INSTALLATION > FUEL LEVEL SENSOR > REMOVAL

1. Release the fuel system pressure. Refer to: FUEL SYSTEM PRESSURE RELEASE - 2.3L EcoBoost (231kW/314PS).

2. Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect .

NOTE: The supplemental refueling adapter is located in the luggage compartment.

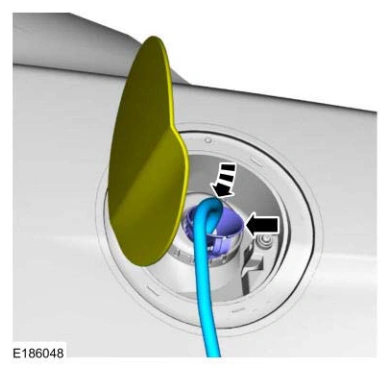

3. Install the supplemental refueling adapter and a 6 ft. length of 5/8 in. semi-rigid fuel drain tube into the Easy Fuel™ (capless) fuel tank filler pipe until the tube enters the fuel tank.

Fuel Level Sensor — original illustration 3, reference 6180Original colors & callouts · Select to enlarge

NOTE: This step is to remove approximately 3/16 tank of the fuel (3 gallons) from a completely full fuel tank and the majority of any residual fuel in the fuel tank filler

Ford_Mustang_all_2015-2017.pdf · source reference 6180

Original technical text and illustrations, formatted as HTML. Follow the engine, transmission, equipment, model and year specified in the source. Import and layout checks do not establish applicability to every 2015–2017 Mustang. About this collection.
