Fuel Tank — Removal — Fuel Tank And Lines - 3.7L Duratec (227kW & 301PS) · Reference 6215

2. Using a screwdriver inserted into the slot on the pinion flange, pry the driveshaft from the pinion flange.

Use the General Equipment: Flat Headed Screw Driver

3. Separate the driveshaft from the pinion flange.

Fuel Tank — original illustration 1, reference 6215Original colors & callouts · Select to enlarge

NOTE: Do not over articulate the driveshaft or damage may occur.

6. Remove the driveshaft center support bearing bolts and lower the driveshaft away from the rear axle flange.

Fuel Tank — original illustration 2, reference 6215Original colors & callouts · Select to enlarge

7. Release the clamp and disconnect the fuel tank filler pipe from the fuel tank.

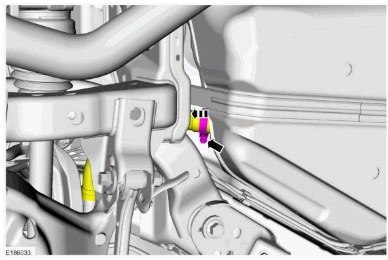

Fuel Tank — original illustration 3, reference 6215Original colors & callouts · Select to enlarge

8. Disconnect the fuel vapor tube assembly-to-fuel tank quick connect coupling. Refer to: QUICK RELEASE COUPLING .
