Fuel Tank — Removal — Fuel Tank And Lines - 3.7L Duratec (227kW & 301PS) · Reference 6216

Fuel Tank — original illustration 1, reference 6216Original colors & callouts · Select to enlarge

9. Remove the nut and position the LH emergency brake cable bracket aside.

Fuel Tank — original illustration 2, reference 6216Original colors & callouts · Select to enlarge

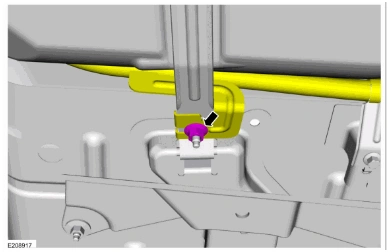

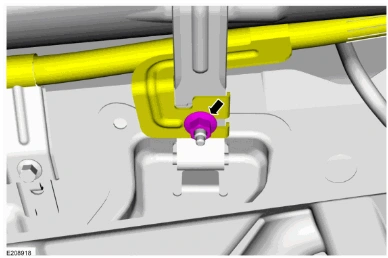

10. Remove the nut and position the RH emergency brake cable bracket aside.

Fuel Tank — original illustration 3, reference 6216Original colors & callouts · Select to enlarge

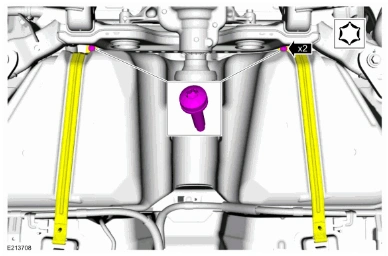

11. Using an appropriate impact tool and a TP50 "Torx Plus" Socket Driver, remove the fuel tank strap bolts.

Fuel Tank — original illustration 4, reference 6216Original colors & callouts · Select to enlarge

NOTE: Once the fuel tank is removed from the vehicle, reinstall the driveshaft

Ford_Mustang_all_2015-2017.pdf · source reference 6216
