Fuel Tank — Installation — Fuel Tank And Lines - 3.7L Duratec (227kW & 301PS) · Reference 6219

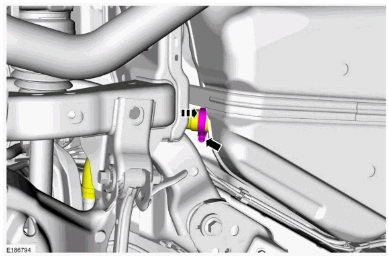

6. Connect the fuel tank filler pipe hose to the fuel tank and tighten the clamp.

Fuel Tank — original illustration 1, reference 6219Original colors & callouts · Select to enlarge

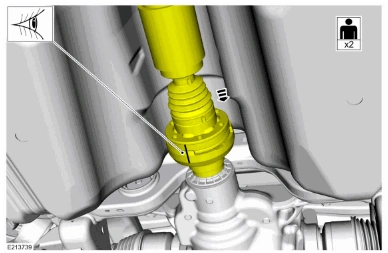

NOTE: The help of a assistant will be needed. Do not over articulate the driveshaft or damage may occur.

7. Align the index marks on the driveshaft to the rear axle pinion flange.

Fuel Tank — original illustration 2, reference 6219Original colors & callouts · Select to enlarge

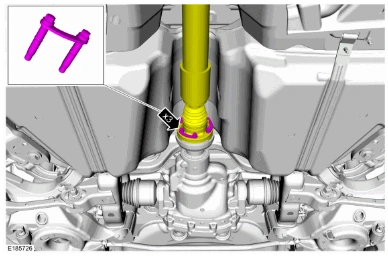

Step 8

1. Clean the bolts.

2. Apply the thread locking sealant to the bolt threads.

Material: Threadlock and Sealer / TA-25-B

3. Install the bolts.

Torque: 41 lb.ft (55 Nm)

Fuel Tank — original illustration 3, reference 6219Original colors & callouts · Select to enlarge

Step 9

1. Clean the bolts.

2. Apply thread locking sealant to the bolt threads.
