Fuel Tank Filler Pipe — Removal — Fuel Tank And Lines - 3.7L Duratec (227kW & 301PS) · Reference 6222

immediate surrounding area of any dirt or foreign material.

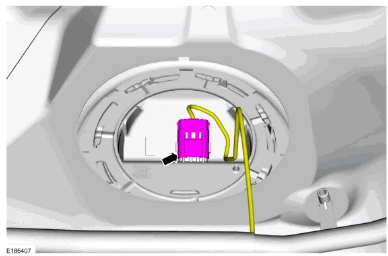

17. Connect the electrical connector.

Fuel Tank Filler Pipe — original illustration 1, reference 6222Original colors & callouts · Select to enlarge

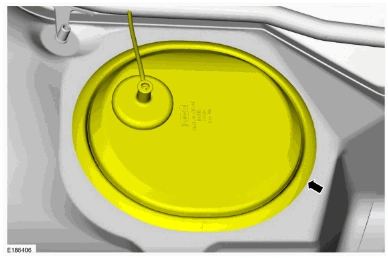

18. Install the Fuel Level Sensor access cover.

Fuel Tank Filler Pipe — original illustration 2, reference 6222Original colors & callouts · Select to enlarge

19. Install the rear seat cushion. Refer to: REAR SEAT CUSHION .

20. Connect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT .

REMOVAL AND INSTALLATION > FUEL TANK FILLER PIPE

Special Tool(s) / General Equipment

Fuel Tank Filler Pipe — original illustration 3, reference 6222Original colors & callouts · Select to enlarge	292-00004 Fuel Tanker 100 GPM

REMOVAL AND INSTALLATION > FUEL TANK FILLER PIPE > REMOVAL

NOTE: Removal steps in this procedure may contain installation steps.
