1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
2. Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect .
NOTE: The supplemental refueling adapter is located in the luggage compartment.

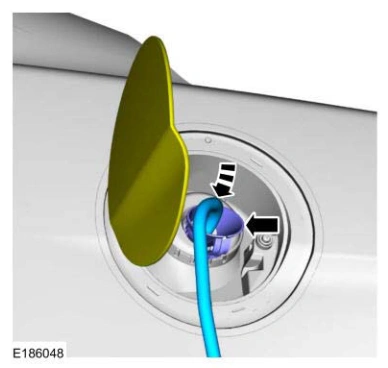

3. Install the supplemental refueling adapter and a 6 ft. length of 5/8 in. semi-rigid fuel drain tube into the Easy Fuel™ (capless) fuel tank filler pipe until the tube enters the fuel tank.
NOTE: This step is to remove approximately one-eighth tank of the fuel from a completely full fuel tank and the majority of any residual fuel in the fuel tank filler pipe, lowering the fuel level below the fuel tank filler pipe inlet.
4. Attach the Fuel Storage Tanker to the fuel drain tube and remove approximately one-eighth (approximately 2 gallons) of fuel from the tank.
Use Special Service Tool: 292-00004 Fuel Tanker 100 GPM.
5. Remove the rear wheel on the LH side. Refer to: Wheel and Tire .
6. Remove the retainers and position aside LH rear wheel splash shield aside.
