Fuel Tank — Installation — Fuel Tank And Lines - 3.7L Duratec (227kW & 301PS) · Reference 6220

Material: Threadlock and Sealer / TA-25-B

3. Install the bolts.

Torque: 35 lb.ft (48 Nm)

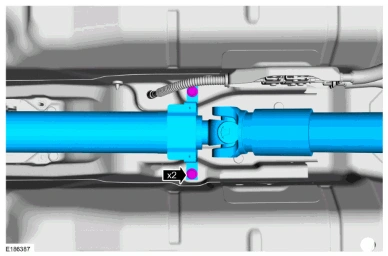

Fuel Tank — original illustration 1, reference 6220Original colors & callouts · Select to enlarge

10. Install the muffler and tailpipe. Refer to: MUFFLER AND TAILPIPE .

NOTE: Inspect the surfaces of the Fuel Pump and Sender Unit flange and fuel tank O-ring seal contact surfaces. Do not polish or adjust the O-ring seal contact area of the fuel tank flange or the fuel tank. Install a new Fuel Pump and Sender Unit or fuel tank if the O-ring seal contact area is bent, scratched or corroded.

11. Install a new Fuel Pump and Sender Unit O-ring seal.

NOTE: Carefully install the Fuel Tank Sender Unit lock ring wrench to avoid damage to the Fuel Pump and Sender Unit when removing the lock ring. Using the lock ring wrench install the Fuel Pump and Sender Unit lock ring.

12. Using the lock ring wrench install the Fuel Pump and Sender Unit lock ring.

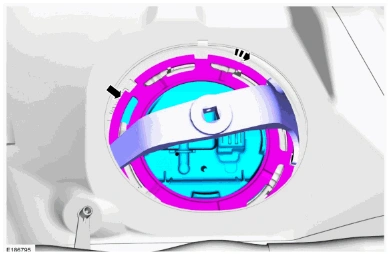

Fuel Tank — original illustration 2, reference 6220Original colors & callouts · Select to enlarge

13. Connect electrical connector and fuel tube quick release coupling. Refer to: QUICK RELEASE COUPLING .
