Fuel Tank — Installation — Fuel Tank And Lines - 3.7L Duratec (227kW & 301PS) · Reference 6221

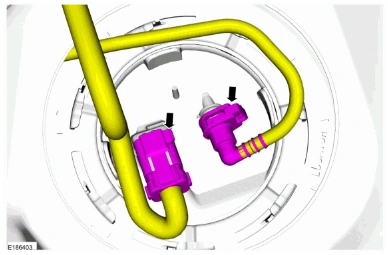

Fuel Tank — original illustration 1, reference 6221Original colors & callouts · Select to enlarge

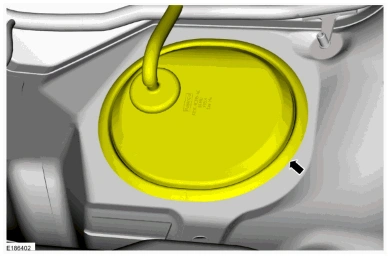

14. Install the Fuel Pump and Sender Unit access cover.

Fuel Tank — original illustration 2, reference 6221Original colors & callouts · Select to enlarge

NOTE: Inspect the surfaces of the Fuel Pump and Sender Unit flange and fuel tank O-ring seal contact surfaces. Do not polish or adjust the O-ring seal contact area of the fuel tank flange or the fuel tank. Install a new Fuel Pump and Sender Unit or fuel tank if the O-ring seal contact area is bent, scratched or corroded.

15. Install a new Fuel Level Sensor O-ring seal.

NOTE: Carefully install the Fuel Tank Sender Unit lock ring wrench to avoid damage to the fuel level sensor when removing the lock ring.

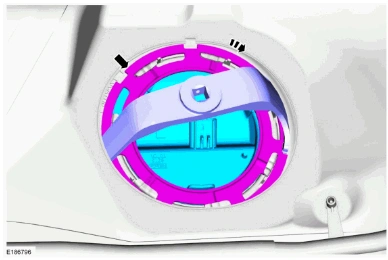

16. Using the lock ring wrench install the fuel level sensor lock ring.

Fuel Tank — original illustration 3, reference 6221Original colors & callouts · Select to enlarge

NOTE: Clean the fuel level sensor connections, flange surfaces and the
