Fuel Tank — Installation — Fuel Tank And Lines - 3.7L Duratec (227kW & 301PS) · Reference 6218

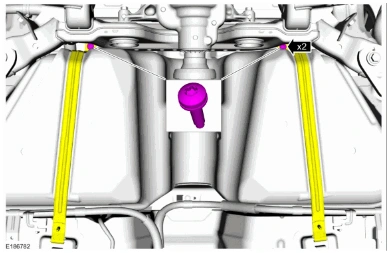

Fuel Tank — original illustration 1, reference 6218Original colors & callouts · Select to enlarge

3. Reposition the LH emergency brake cable bracket and install the nut.

Torque: 18 lb.ft (25 Nm)

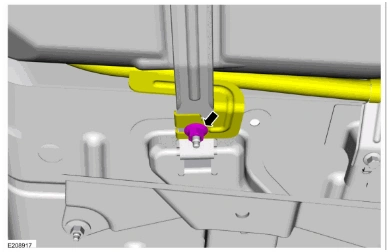

Fuel Tank — original illustration 2, reference 6218Original colors & callouts · Select to enlarge

4. Reposition the RH emergency brake cable bracket and install the nut.

Torque: 18 lb.ft (25 Nm)

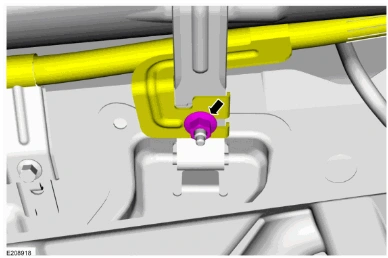

Fuel Tank — original illustration 3, reference 6218Original colors & callouts · Select to enlarge

5. Connect the fuel vapor tube assembly-to-fuel tank quick connect coupling. Refer to: QUICK RELEASE COUPLING .

Fuel Tank — original illustration 4, reference 6218Original colors & callouts · Select to enlarge
