Fuel Tank Filler Pipe — Removal — Fuel Tank And Lines - 3.7L Duratec (227kW & 301PS) · Reference 6224

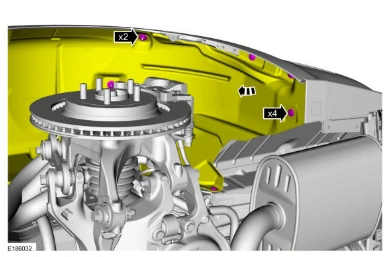

Fuel Tank Filler Pipe — original illustration 1, reference 6224Original colors & callouts · Select to enlarge

NOTE: Some fuel may remain in the fuel tank filler pipe after draining. Carefully disconnect the fuel tank filler pipe hose from the fuel tank and drain any residual fuel into a suitable container.

7. Release the clamp and disconnect the fuel tank filler pipe from the fuel tank.

Torque

: 53 lb.in (6 Nm)

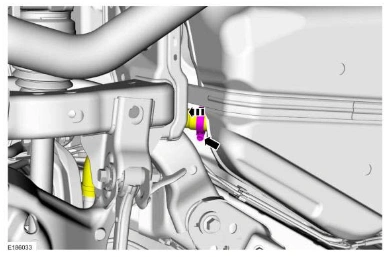

Fuel Tank Filler Pipe — original illustration 2, reference 6224Original colors & callouts · Select to enlarge

1. Disconnect the vapor tube Quick Release Coupling. Refer to: QUICK RELEASE COUPLING - 3.7L Duratec (227kW/301PS).

2. Remove retainers and the Fuel Tank Filler Pipe.

Torque

: 18 lb.ft (25 Nm)

Ford_Mustang_all_2015-2017.pdf · source reference 6224
