Shift Solenoids (Ss) — Installation Overhaul — Main Control Valve Body Overhaul — Transmission

Automatic Transmission - 6-Speed Automatic Transmission - 6R80

Source configuration appliesSource reference 8,971HTML edition

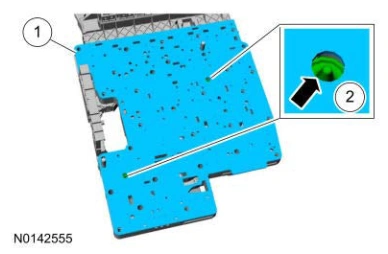

2. Drain back valves

Shift Solenoids (Ss) — original illustration 1, reference 8971Original colors & callouts · Select to enlarge

NOTE: If the drain back valves are not installed correctly in the separator plate, damage to the transmission can occur.

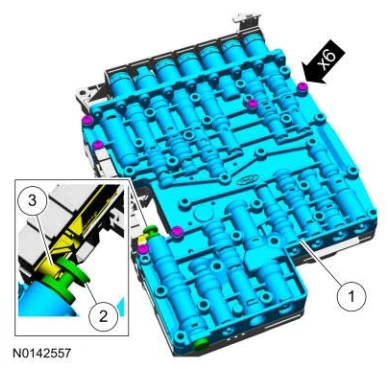

19. Position the main control lower valve body on the 2 molded leadframe alignment studs, align the manual valve with the TR sensor on the molded leadframe and install the main control lower valve body. Install the long molded leadframe-to-valve body bolts hand-tight.

1. Main control lower valve body

2. Manual valve

3. TR sensor

Shift Solenoids (Ss) — original illustration 2, reference 8971Original colors & callouts · Select to enlarge

20.
