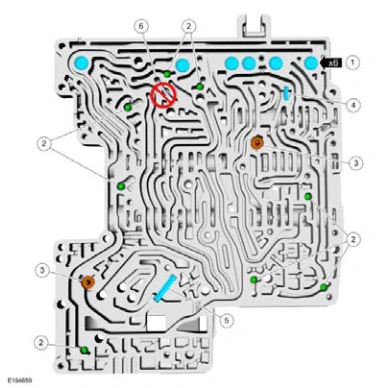

15. Install the solenoid dampers, check balls, converter drain back valves and springs and filter screens in the main control assembly.
1. Solenoid dampers
2. Check balls
3. Converter drain back valves and springs
4. Small filter screen
5. Large filter screen
6. Empty hydraulic passage (no check ball)
NOTE: Some vehicles may not have been built with a foam strip seal. A new foam strip seal should be installed on all molded leadframes.
16. Install a new foam strip seal on the molded leadframe.
