Shift Solenoids (Ss) — Installation Overhaul — Main Control Valve Body Overhaul — Transmission

Automatic Transmission - 6-Speed Automatic Transmission - 6R80

Source configuration appliesSource reference 8,967HTML edition

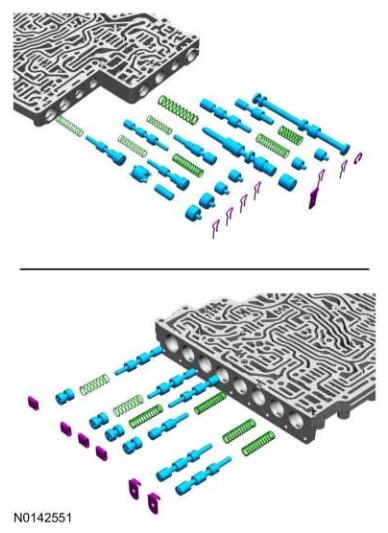

Shift Solenoids (Ss) — original illustration 1, reference 8967Original colors & callouts · Select to enlarge

11. Inspect the solenoid screens for debris that may restrict fluid flow.

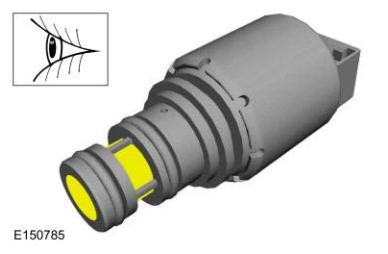

Shift Solenoids (Ss) — original illustration 2, reference 8967Original colors & callouts · Select to enlarge

12. If installing new solenoids, note the color of the plastic nozzle and the large O-ring. High pressure solenoids, such as the LPC solenoid, SSB and SSD, have black plastic nozzles and orange O-rings. Low pressure solenoids, such as the TCC solenoid, SSA and SSC, have brown plastic nozzles and green O-rings. The solenoids can only be replaced with the same color solenoid.

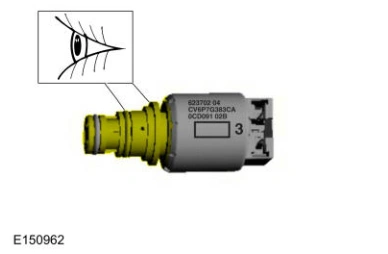

Shift Solenoids (Ss) — original illustration 3, reference 8967Original colors & callouts · Select to enlarge
