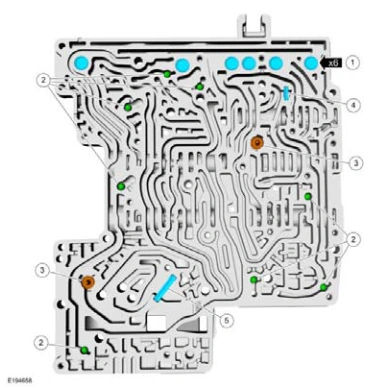

2. Check balls
3. Converter drain back valves and springs
4. Small filter screen
5. Large filter screen
NOTE: Note the location and order of the clips, caps, valves and valve springs for assembly.
NOTE: Many components and surfaces in the main control valve body are precision machined. Careful handling during disassembly, cleaning, inspection and assembly prevents unnecessary damage to machined surfaces.
8. Remove the retaining clips, caps, valves and valve springs from each bore of the main control assembly. Clean the main control assembly and install the clips, caps, valves and valve springs in the same order as noted during removal.
