Shift Solenoids (Ss) — Installation Overhaul — Main Control Valve Body Overhaul — Transmission

Automatic Transmission - 6-Speed Automatic Transmission - 6R80

Source configuration appliesSource reference 8,963HTML edition
← Chapter contentsManual collection

NOTE: Note the location of the 8 check balls, 6 solenoid dampers, 2 internal valves and springs and 2 filter screens for reassembly.

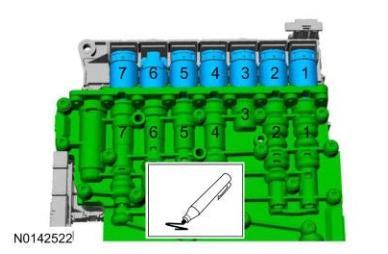

1. Make an identifying mark on each solenoid and the corresponding bore for correct assembly.

For solenoid and valve identification. Refer to: Main Control Valve Body .

Shift Solenoids (Ss) — original illustration 1, reference 8963Original colors & callouts · Select to enlarge

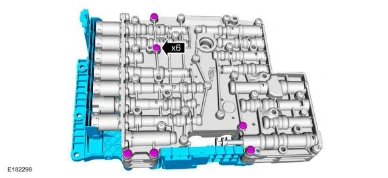

2. Remove the long bolts from the molded leadframe.

Shift Solenoids (Ss) — original illustration 2, reference 8963Original colors & callouts · Select to enlarge

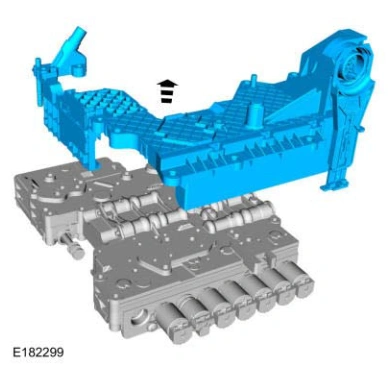

3. Carefully separate the molded leadframe from the main control valve body assembly.

Shift Solenoids (Ss) — original illustration 3, reference 8963Original colors & callouts · Select to enlarge

4.
