Shift Solenoids (Ss) — Installation Overhaul — Main Control Valve Body Overhaul — Transmission

Automatic Transmission - 6-Speed Automatic Transmission - 6R80

Source configuration appliesSource reference 8,961HTML edition

← Chapter contents Manual collection

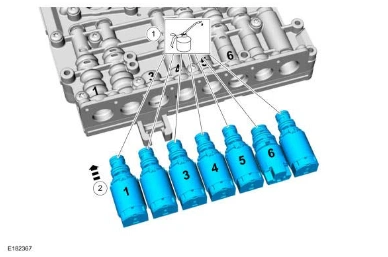

Shift Solenoids (Ss) — original illustration 1, reference 8961Original colors & callouts · Select to enlarge

4. Position the solenoid bracket in place and install the bolts.

Torque

: 53 lb.in (6 Nm)

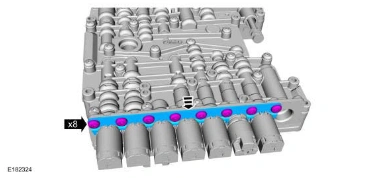

Shift Solenoids (Ss) — original illustration 2, reference 8961Original colors & callouts · Select to enlarge

NOTE: Some vehicles may not have been built with a foam strip seal. A new foam strip seal should be installed on all molded leadframes.

5. Install a new foam strip seal on the molded leadframe.

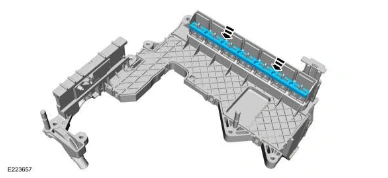

Shift Solenoids (Ss) — original illustration 3, reference 8961Original colors & callouts · Select to enlarge

NOTE: The TR sensor pin must be aligned with the manual control valve during installation.

6. Position the molded leadframe on the main control valve body and align the TR sensor pin with the manual control valve.
