Shift Solenoids (Ss) — Installation Overhaul — Main Control Valve Body Overhaul — Transmission

Automatic Transmission - 6-Speed Automatic Transmission - 6R80

Source configuration appliesSource reference 8,962HTML edition

← Chapter contents Manual collection

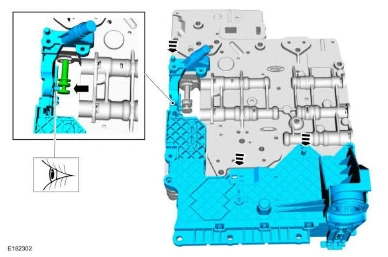

Shift Solenoids (Ss) — original illustration 1, reference 8962Original colors & callouts · Select to enlarge

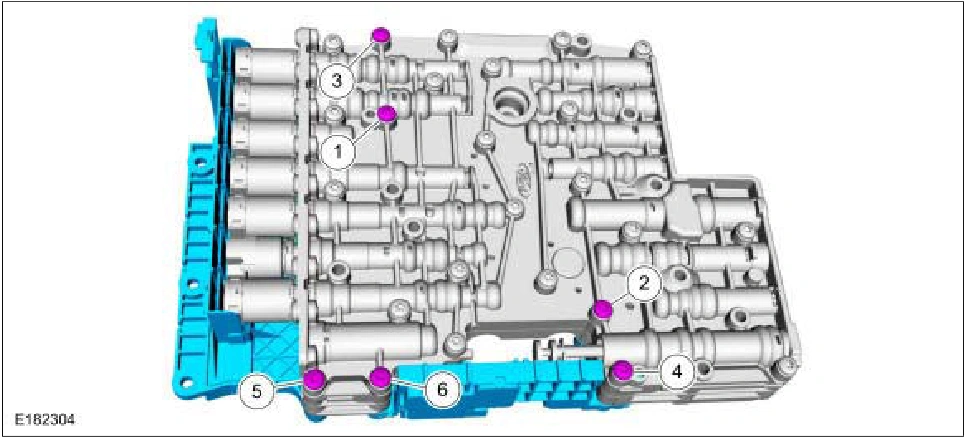

7. Install the long bolts into the molded leadframe. Tighten the bolts in the sequence shown.

Torque

: 53 lb.in (6 Nm)

Fig 1: Molded Leadframe Bolts Tightening Sequence

Shift Solenoids (Ss) — original illustration 2, reference 8962Original colors & callouts · Select to enlarge

Courtesy of FORD MOTOR CO.

8. Install the main control valve body. Refer to: Main Control Valve Body .

OVERHAUL > MAIN CONTROL VALVE BODY

NOTE: Solenoids may visually appear the same but their designs/functions are different. Use care not to assemble the main control assembly incorrectly. Incorrect solenoid installation results in poor transmission shift quality.
