Shift Solenoids (Ss) — Installation Overhaul — Main Control Valve Body Overhaul — Transmission

Automatic Transmission - 6-Speed Automatic Transmission - 6R80

Source configuration appliesSource reference 8,960HTML edition

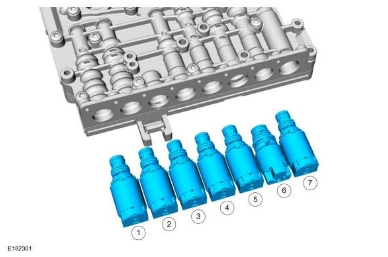

6. 7G484, SSE, normally off ON/OFF solenoid.

7. 7G383, TCC solenoid, normally low solenoid (brown nozzle).

Shift Solenoids (Ss) — original illustration 1, reference 8960Original colors & callouts · Select to enlarge

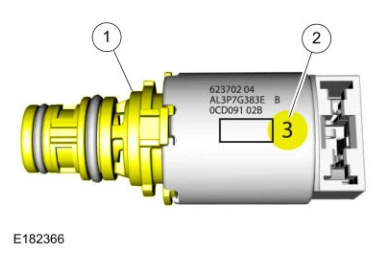

1. If replacing a Variable Force Solenoid (VFS), record the solenoid nozzle color to get the correct part number for the solenoid.

2. If replacing a Variable Force Solenoid (VFS), record the band number to get the correct part number for the solenoid.

Shift Solenoids (Ss) — original illustration 2, reference 8960Original colors & callouts · Select to enlarge

3. Lubricate the solenoid O-rings and position the solenoid(s) in the main control valve body in the correct port(s) as marked during removal.

Material

: Motorcraft ® MERCON ® LV Automatic Transmission Fluid (U.S.) / XT-10-QLVC (U.S.) (MERCON ® LV) (WSS-M2C938-A)
