REMOVAL AND INSTALLATION > SHIFT SOLENOIDS (SS)

Materials

Name	Specification
Motorcraft ® MERCON ® LV Automatic Transmission Fluid (U.S.) XT-10-QLVC (U.S.)	MERCON ® LVWSS- M2C938-A

REMOVAL AND INSTALLATION > SHIFT SOLENOIDS (SS) > REMOVAL

1. Remove the main control valve body. Refer to: Main Control Valve Body .

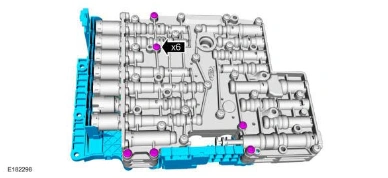

2. Remove the long bolts from the molded leadframe.

Shift Solenoids (Ss) — original illustration 2, reference 8957Original colors & callouts · Select to enlarge

3. Carefully separate the molded leadframe from the main control valve body assembly.
