REMOVAL AND INSTALLATION > SELECTOR SHAFT SEAL > INSTALLATION

1. Install a new selector shaft seal on the special tool. Use Special Service Tool: 307-559 Installer, Shifter Fluid Seal.

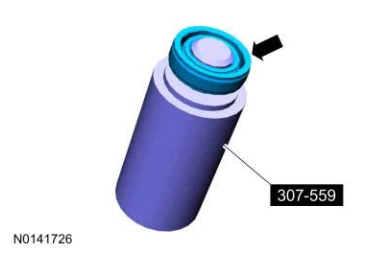

Selector Shaft Seal — original illustration 1, reference 8955Original colors & callouts · Select to enlarge

2. Using the special tool, install the selector shaft seal. Use Special Service Tool: 307-559 Installer, Shifter Fluid Seal.

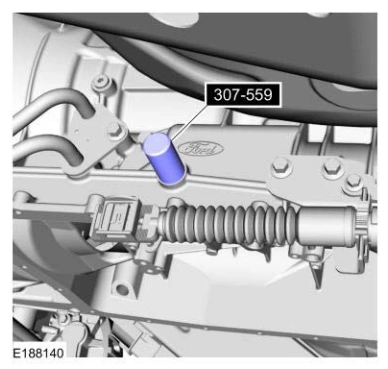

Selector Shaft Seal — original illustration 2, reference 8955Original colors & callouts · Select to enlarge

3.

NOTE: Push on the park pawl to position the park pawl actuator rod in place.

1. Install the manual valve detent lever and park pawl actuator rod as an assembly.

2. Position the selector lever spacer in place.

Ford_Mustang_all_2015-2017.pdf · source reference 8955
