Selector Shaft Seal — Removal — Automatic Transmission - 6-Speed Automatic Transmission - 6R80 · Reference 8954

1. Remove and discard the roll pin.

2. Hold the selector lever spacer to keep it from falling.

3. Slide the selector lever shaft out of the case.

4. Remove the manual valve detent lever and park pawl actuator rod as an assembly.

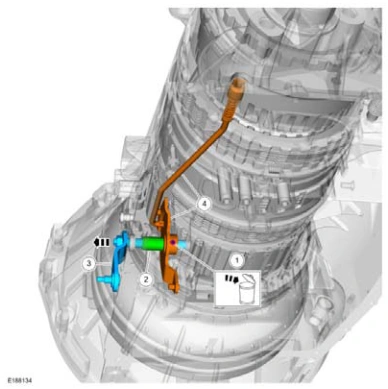

Selector Shaft Seal — original illustration 1, reference 8954Original colors & callouts · Select to enlarge

6. Remove and discard the selector shaft seal.

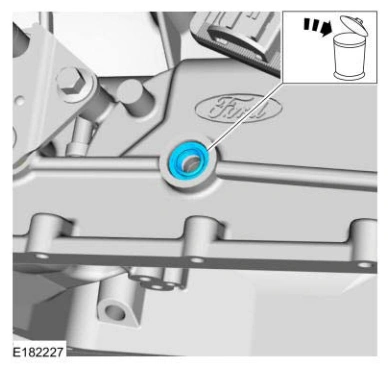

Selector Shaft Seal — original illustration 2, reference 8954Original colors & callouts · Select to enlarge
