Selector Shaft Seal — Installation — Automatic Transmission - 6-Speed Automatic Transmission - 6R80 · Reference 8956

3. Slide the selector lever shaft into the case and line up the roll pin hole.

4. Install the new roll pin.

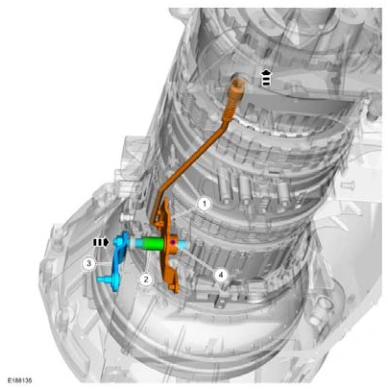

Selector Shaft Seal — original illustration 1, reference 8956Original colors & callouts · Select to enlarge

4. While holding the park rod down, install the park rod actuating plate and bolts.

Torque

: 106 lb.in (12 Nm)

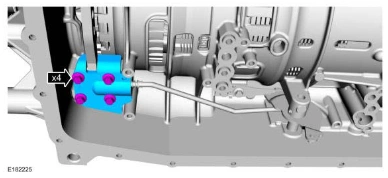

Selector Shaft Seal — original illustration 2, reference 8956Original colors & callouts · Select to enlarge

5. Install the main control valve body. Refer to: Main Control Valve Body .

NOTE: To prevent selector lever cable damage, do not apply force to the selector lever cable between the selector lever and the selector lever cable bracket.

6. Install the selector lever cable end on the selector lever.
