Shift Solenoids (Ss) — Removal — Automatic Transmission - 6-Speed Automatic Transmission - 6R80 · Reference 8958

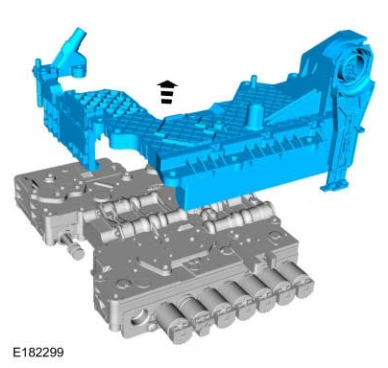

Shift Solenoids (Ss) — original illustration 1, reference 8958Original colors & callouts · Select to enlarge

4. If equipped, remove and discard the foam strip seal.

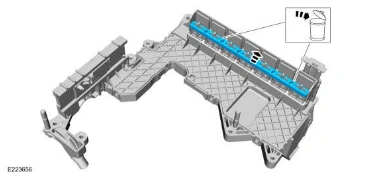

Shift Solenoids (Ss) — original illustration 2, reference 8958Original colors & callouts · Select to enlarge

5. Remove the solenoid bracket bolts and the solenoid bracket.

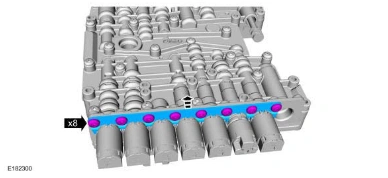

Shift Solenoids (Ss) — original illustration 3, reference 8958Original colors & callouts · Select to enlarge

NOTE: A Variable Force Solenoid (VFS) is calibrated from the factory and are not all the same. To replace a Variable Force Solenoid (VFS), match the replacement solenoid nozzle color and the band number with the original solenoid or harsh/erratic shifts, harsh/soft engagement or damage to the transmission can occur.

1. If replacing more then one solenoid, number the solenoids and number the main control valve body solenoid ports to correspond to the solenoid.
