Shift Solenoids (Ss) — Installation Overhaul — Main Control Valve Body Overhaul — Transmission

Automatic Transmission - 6-Speed Automatic Transmission - 6R80

Source configuration appliesSource reference 8,964HTML edition
← Chapter contentsManual collection

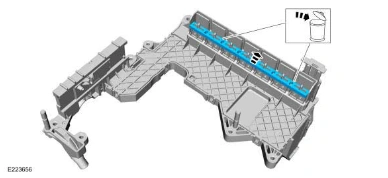

If equipped, remove and discard the foam strip seal.

Shift Solenoids (Ss) — original illustration 1, reference 8964Original colors & callouts · Select to enlarge

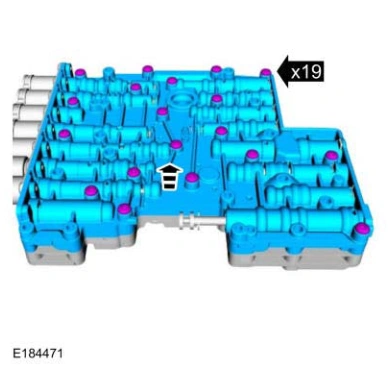

5. Remove the short main control bolts from the main control assembly. Separate the lower half of the main control assembly from the upper half of the main control assembly.

Shift Solenoids (Ss) — original illustration 2, reference 8964Original colors & callouts · Select to enlarge

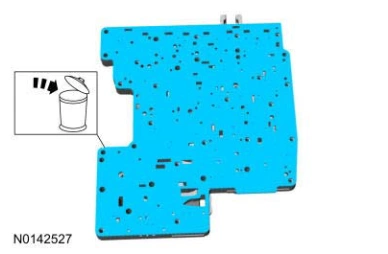

6. Remove and discard the main control valve body separator plate.

Shift Solenoids (Ss) — original illustration 3, reference 8964Original colors & callouts · Select to enlarge

7. Remove the solenoid dampers, check balls, converter drain back valves and filter screens from the main control assembly. Note the location for assembly.
