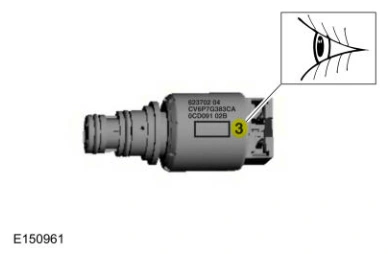

13. Determine the part number suffix by checking the solenoid service band number etched on the side of the solenoid. The band number is next to the two-dimensional matrix barcode on the side of the solenoid and will be a 1, 2, 3, 4 or 5. Determine the part number suffix and match the new solenoid base part number and suffix with the old solenoid.
Solenoid Number | Solenoid Part Number Suffix |
|---|---|
1 | B |
2 | C |
3 | D |
4 | E |
5 | F |

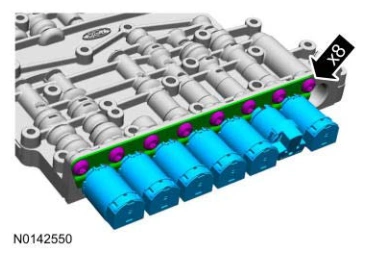

14. Install the solenoids into their correct bores as marked during disassembly.
Torque
: 53 lb.in (6 Nm)
NOTE: Toward the back of the upper valve body there is a hydraulic passage that is shaped as though it receives a check ball. This passage does not require a check ball. Be sure not to mistake this hydraulic passage for a passage that does require a check ball or damage to the transmission can occur.
