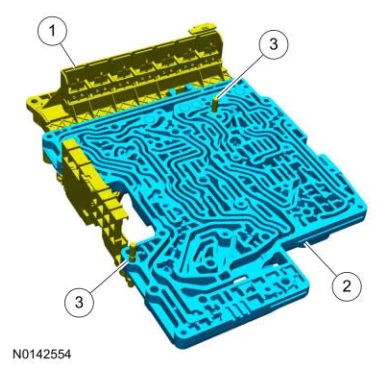

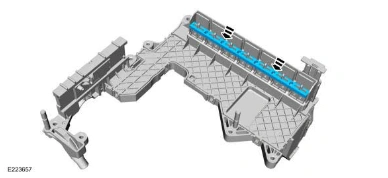

17. Align the guide pins on the molded leadframe with the holes in the main control upper valve body and install the valve body onto the molded leadframe.
1. Molded leadframe
2. Upper main control valve body
3. Guide pins
NOTE: If the drain back valves are not installed correctly in the separator plate, damage to the transmission can occur.
18. Position the new main control separator plate on the main control upper valve body. Check the 2 drain back valves to be sure they are correctly positioned in the separator plate when the separator plate is pressed flush against the main control upper valve body.
1. Main control separator plate
