Upshift Paddle Switch — Removal

Automatic Transmission External Controls

Source configuration appliesSource reference 9,119HTML edition
← Chapter contentsManual collection

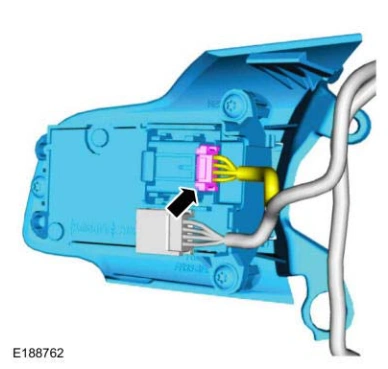

Upshift Paddle Switch — original illustration 1, reference 9119Original colors & callouts · Select to enlarge

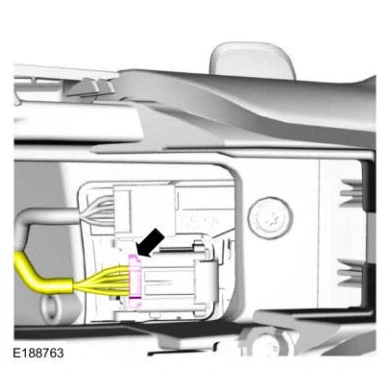

4. Disconnect the upshift paddle switch electrical connector.

Upshift Paddle Switch — original illustration 2, reference 9119Original colors & callouts · Select to enlarge

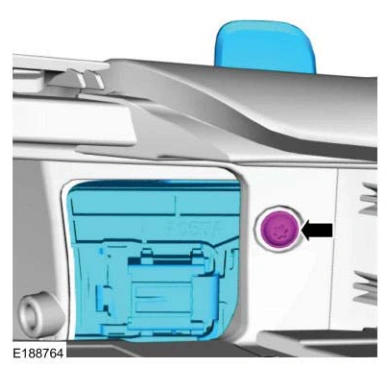

5. Remove the screw and the upshift paddle switch.

Upshift Paddle Switch — original illustration 3, reference 9119Original colors & callouts · Select to enlarge
