REMOVAL AND INSTALLATION > SELECTOR LEVER KNOB > INSTALLATION

1. To install, reverse the removal procedure.

REMOVAL AND INSTALLATION > UPSHIFT PADDLE SWITCH > REMOVAL

NOTE: Removal steps in this procedure may contain installation details.

1. Remove the driver air bag. Refer to: Driver Airbag .

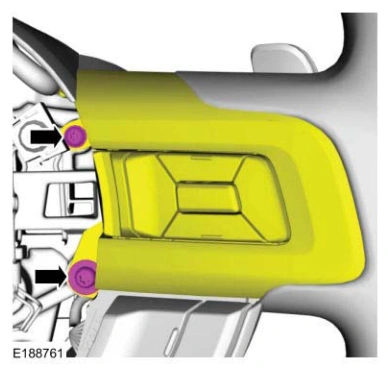

2. Remove the screws and position the RH speed control switch to access the electrical connector.

Upshift Paddle Switch — original illustration 1, reference 9118Original colors & callouts · Select to enlarge

3. Disconnect the RH speed control switch electrical connector and remove the switch.
