Selector Lever Knob — Removal

Automatic Transmission External Controls

Source configuration appliesSource reference 9,117HTML edition
← Chapter contentsManual collection

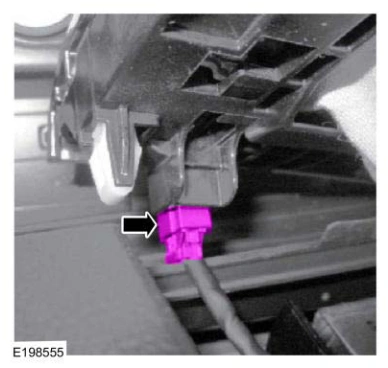

Selector Lever Knob — original illustration 1, reference 9117Original colors & callouts · Select to enlarge

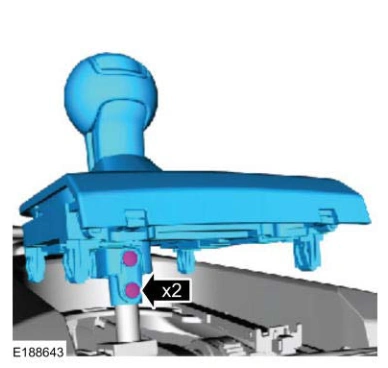

4. Remove the screws and the shifter knob, boot and bezel as an assembly.

Selector Lever Knob — original illustration 2, reference 9117Original colors & callouts · Select to enlarge

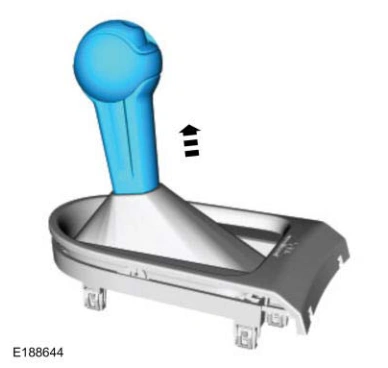

5. Remove the shifter knob from the boot and bezel.

Selector Lever Knob — original illustration 3, reference 9117Original colors & callouts · Select to enlarge
