Selector Lever Knob — Removal — Automatic Transmission External Controls · Reference 9116

REMOVAL AND INSTALLATION > SELECTOR LEVER KNOB > REMOVAL

NOTE: Removal steps in this procedure may contain installation details.

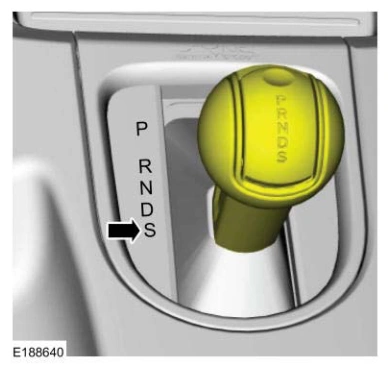

1. Position the shifter in the S position.

Selector Lever Knob — original illustration 1, reference 9116Original colors & callouts · Select to enlarge

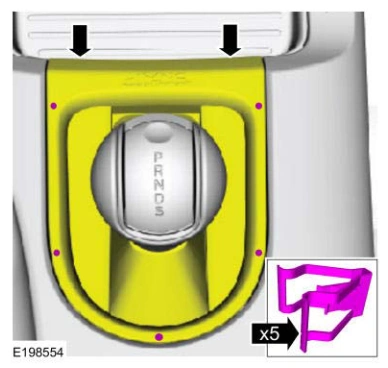

2. Starting from the front corners, carefully pry up the bezel and position it out of the way.

Selector Lever Knob — original illustration 2, reference 9116Original colors & callouts · Select to enlarge

3. Disconnect the electrical connector.
