Selector Lever Cable — Installation

Automatic Transmission External Controls

Source configuration appliesSource reference 9,113HTML edition
← Chapter contentsManual collection

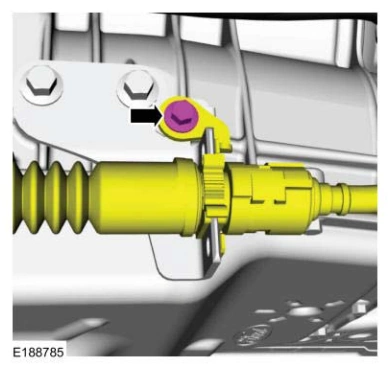

Selector Lever Cable — original illustration 1, reference 9113Original colors & callouts · Select to enlarge

3. Connect the selector lever cable retainer to the transmission.

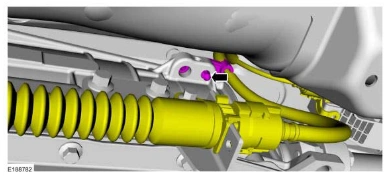

Selector Lever Cable — original illustration 2, reference 9113Original colors & callouts · Select to enlarge

4. Connect the selector lever cable to the selector lever assembly.

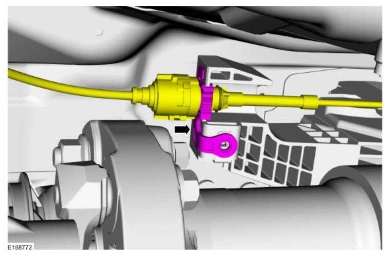

Selector Lever Cable — original illustration 3, reference 9113Original colors & callouts · Select to enlarge

5. With the selector lever in DRIVE, install the selector lever cable retainer bolt and connect the selector lever cable to the selector lever.

Torque

: 62 lb.in (7 Nm)
