Selector Lever Cable — Removal — Automatic Transmission External Controls · Reference 9110

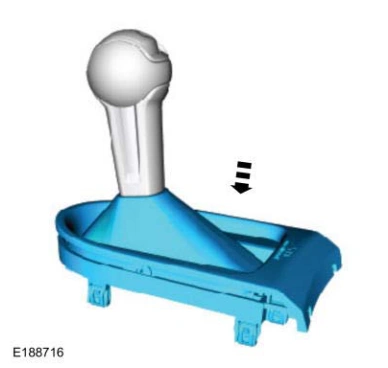

5. Remove the boot and bezel from the shifter knob.

Selector Lever Cable — original illustration 1, reference 9110Original colors & callouts · Select to enlarge

REMOVAL AND INSTALLATION > SELECTOR LEVER BEZEL > INSTALLATION

1. To install, reverse the removal procedure.

REMOVAL AND INSTALLATION > SELECTOR LEVER CABLE > REMOVAL

1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

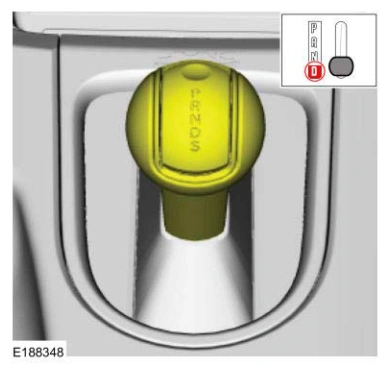

2. Position the selector lever in DRIVE.

Selector Lever Cable — original illustration 2, reference 9110Original colors & callouts · Select to enlarge
