Selector Lever Assembly — Removal — Automatic Transmission External Controls · Reference 9107

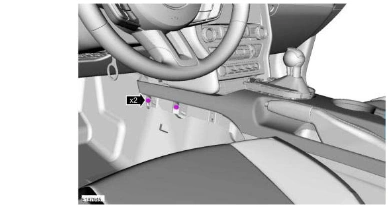

Selector Lever Assembly — original illustration 1, reference 9107Original colors & callouts · Select to enlarge

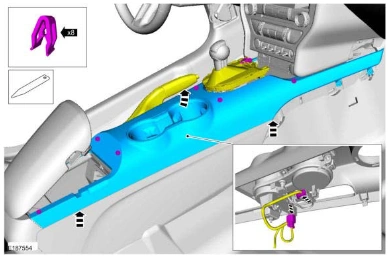

11. Release the clips, position the selector lever bezel and boot aside and remove the floor console upper trim panel.

Disconnect the electrical connectors.

Use the General Equipment: Interior Trim Remover

Selector Lever Assembly — original illustration 2, reference 9107Original colors & callouts · Select to enlarge

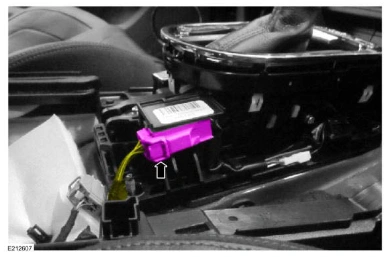

12. Disconnect the selector lever assembly electrical connector.

Selector Lever Assembly — original illustration 3, reference 9107Original colors & callouts · Select to enlarge

13. Remove the bolts, the nuts and the selector lever assembly.

Torque

: 80 lb.in (9 Nm)
