Selector Lever Bezel — Removal

Automatic Transmission External Controls

Source configuration appliesSource reference 9,109HTML edition
← Chapter contentsManual collection

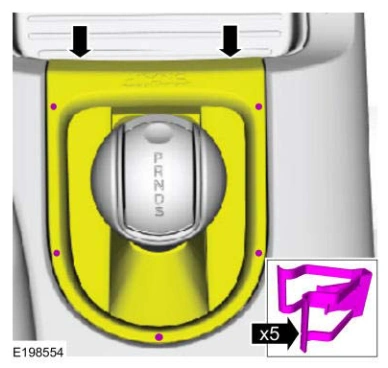

Selector Lever Bezel — original illustration 1, reference 9109Original colors & callouts · Select to enlarge

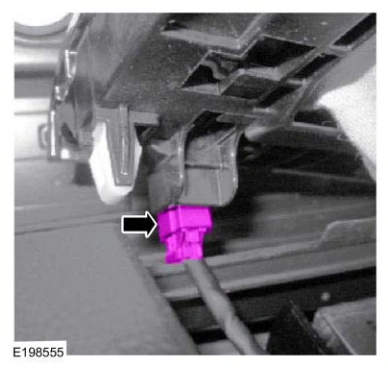

3. Disconnect the electrical connector.

Selector Lever Bezel — original illustration 2, reference 9109Original colors & callouts · Select to enlarge

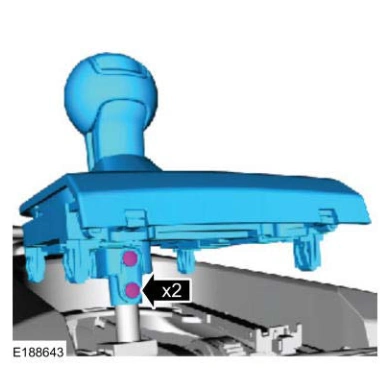

4. Remove the screws and the shifter knob, boot and bezel as an assembly.

Selector Lever Bezel — original illustration 3, reference 9109Original colors & callouts · Select to enlarge
Ford_Mustang_all_2015-2017.pdf · source reference 9109
