Selector Lever Cable — Installation

Automatic Transmission External Controls

Source configuration appliesSource reference 9,112HTML edition
← Chapter contentsManual collection

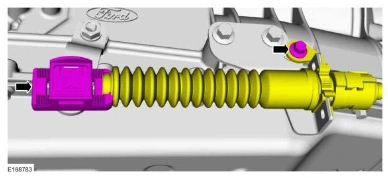

Selector Lever Cable — original illustration 1, reference 9112Original colors & callouts · Select to enlarge

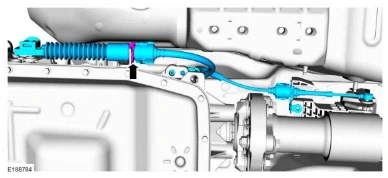

7. Disconnect the selector cable retainer and remove the selector lever cable.

Selector Lever Cable — original illustration 2, reference 9112Original colors & callouts · Select to enlarge

REMOVAL AND INSTALLATION > SELECTOR LEVER CABLE > INSTALLATION

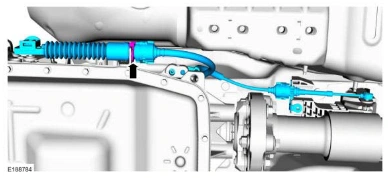

1. Position the selector lever cable and connect the selector lever cable retainer.

Selector Lever Cable — original illustration 3, reference 9112Original colors & callouts · Select to enlarge

2. Install the selector lever cable retainer bolt.

Torque

: 62 lb.in (7 Nm)

Ford_Mustang_all_2015-2017.pdf · source reference 9112
