Selector Lever Cable — Removal

Automatic Transmission External Controls

Source configuration appliesSource reference 9,111HTML edition
← Chapter contentsManual collection

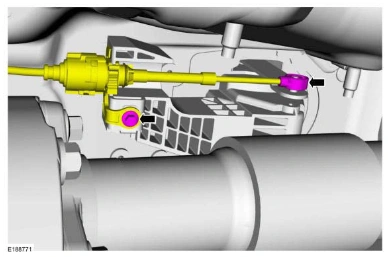

3. Disconnect the selector lever cable from the selector lever and remove the selector lever cable retainer bolt.

Selector Lever Cable — original illustration 1, reference 9111Original colors & callouts · Select to enlarge

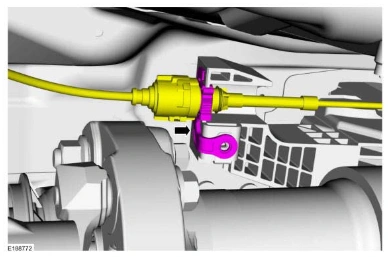

4. Disconnect the selector lever cable from the selector lever assembly.

Selector Lever Cable — original illustration 2, reference 9111Original colors & callouts · Select to enlarge

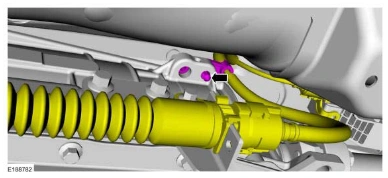

5. Disconnect the selector lever cable retainer from the transmission.

Selector Lever Cable — original illustration 3, reference 9111Original colors & callouts · Select to enlarge

6. Disconnect the selector lever cable from the manual lever and remove the selector lever cable bolt.
