Selector Lever Bezel — Removal

Automatic Transmission External Controls

Source configuration appliesSource reference 9,108HTML edition
← Chapter contentsManual collection

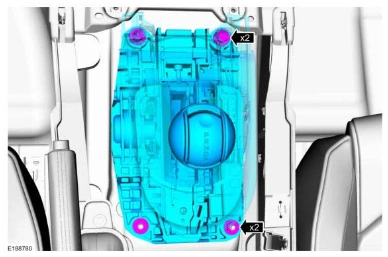

Selector Lever Bezel — original illustration 1, reference 9108Original colors & callouts · Select to enlarge

REMOVAL AND INSTALLATION > SELECTOR LEVER ASSEMBLY > INSTALLATION

1. To install, reverse the removal procedure.

2. Adjust the selector lever cable. Refer to: Selector Lever Cable Adjustment .

REMOVAL AND INSTALLATION > SELECTOR LEVER BEZEL > REMOVAL

NOTE: Removal steps in this procedure may contain installation details.

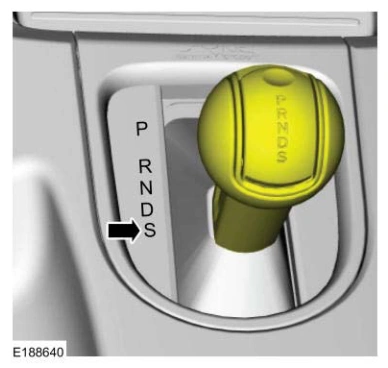

1. Position the shifter in the S position.

Selector Lever Bezel — original illustration 2, reference 9108Original colors & callouts · Select to enlarge

2. Starting from the front corners, carefully pry up the bezel and position it out of the way.
